Products >> Duct Fan >> Mixed Flow Inline Fan

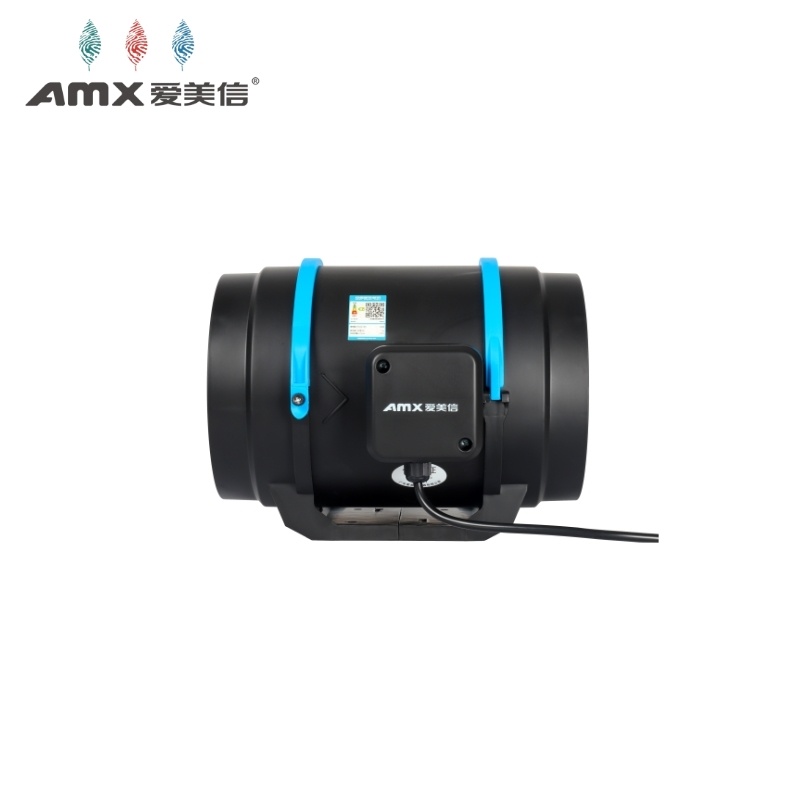

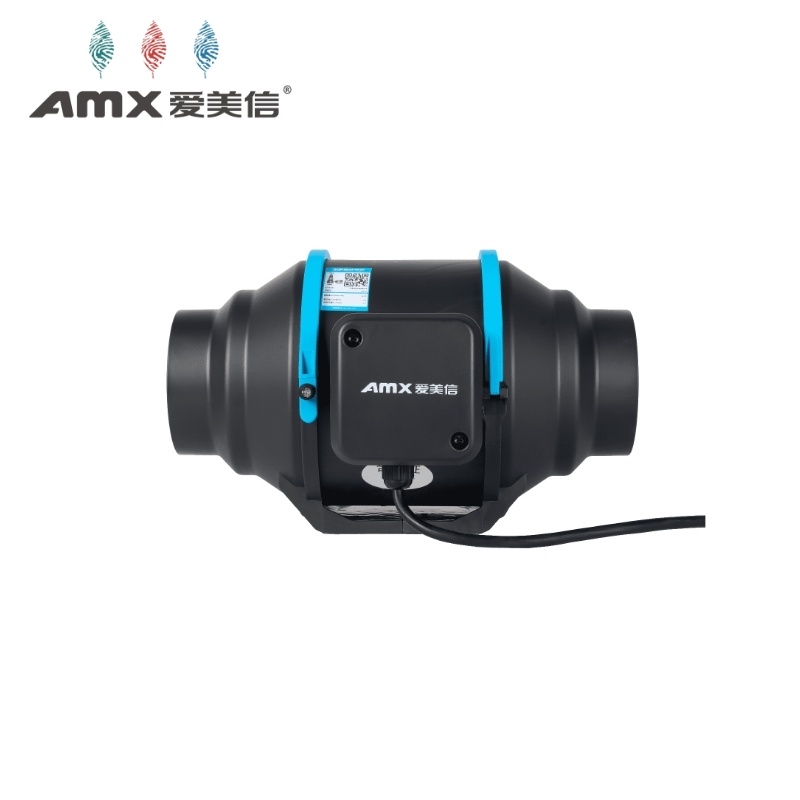

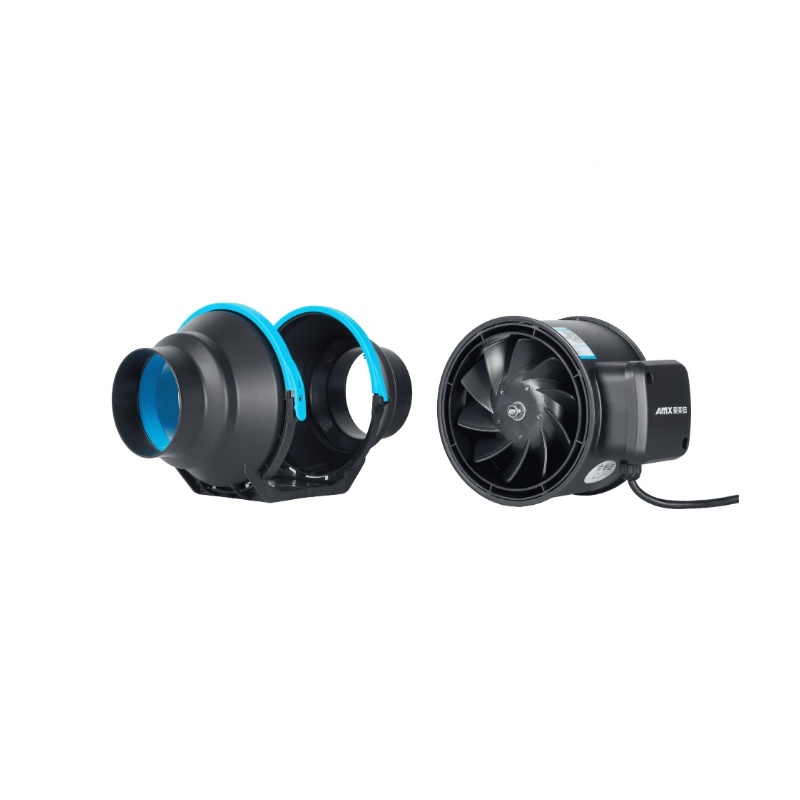

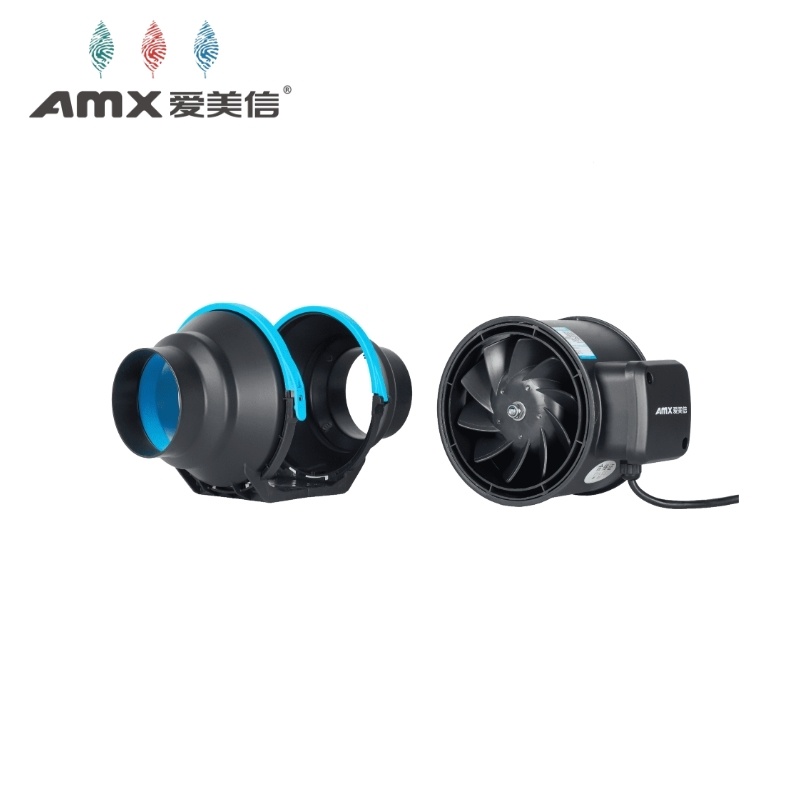

AM Mixed Flow Inline Fan
- Product No.：2023127133221
A solution for most kind of ducting ventilation system.
♦ Simple installation, simple maintenance.
♦ Ball bearing motor.
♦ Large air flow.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ 2 Speeds
♦ Stable long service life
♦ Unique Design.
♦ Low cost.
Performance Table
| Model |
Power (W) |
Air Volume (m³/h) |
Static Pressure (Pa) |
Noise (dB) |
Duct Size (mm) |
Applicable Area |
| AM100 | 28/25 | 200/150 | 180/130 | 30/25 | 100 | 8-16 |
| AM125 | 35/30 | 350/300 | 240/120 | 32/30 | 125 | 10-17 |
| AM150 | 50/40 | 500/400 | 300/250 | 35/30 | 150/160 | 18-36 |
| AM200 | 70/60 | 850/700 | 350/280 | 50/45 | 200 | 34-76 |
| AM250 | 170/130 | 1500/1100 | 550/400 | 60/54 | 250 | 42-84 |
| AM315 | 320/230 | 2300/1800 | 700/500 | 66/61 | 315 | 60-120 |
