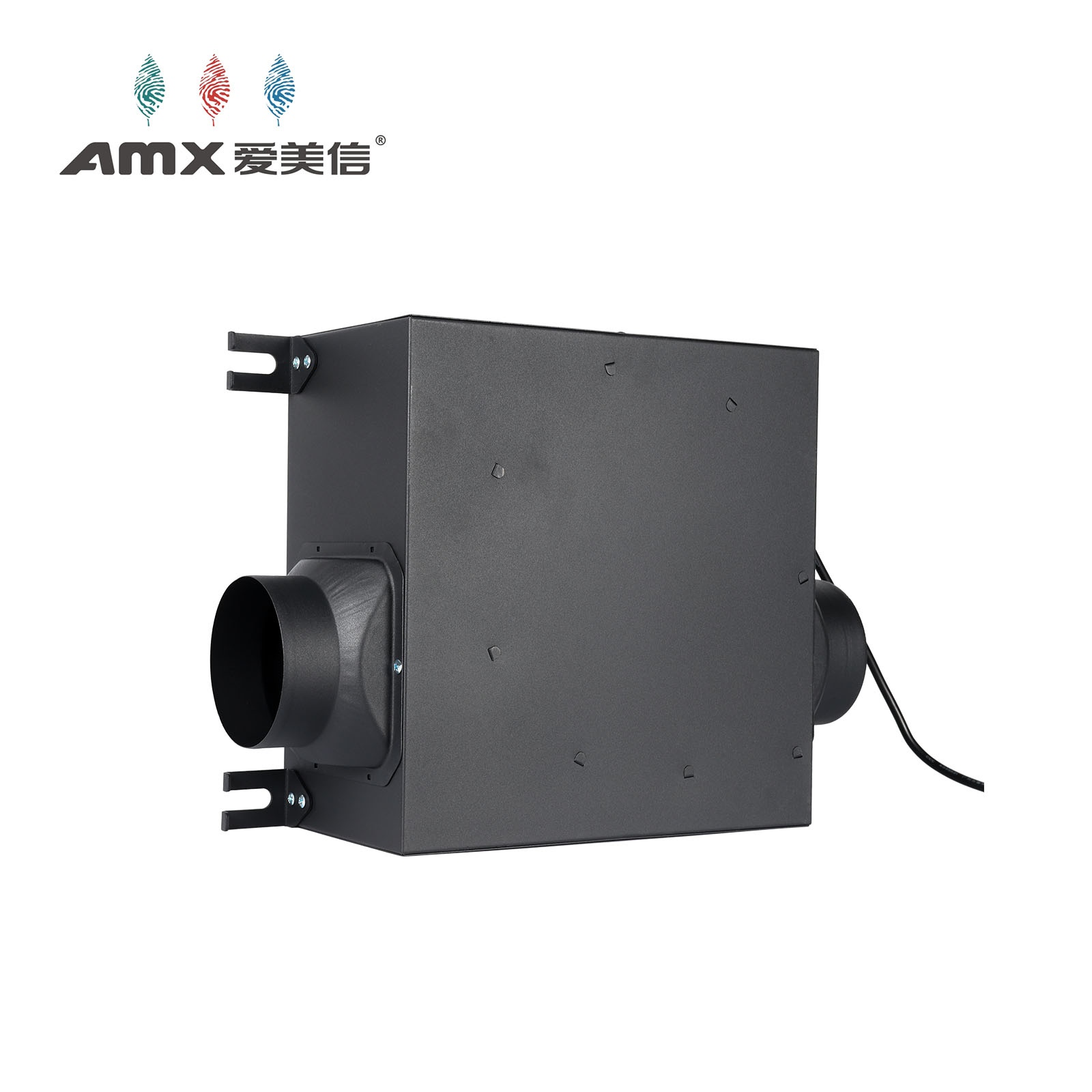

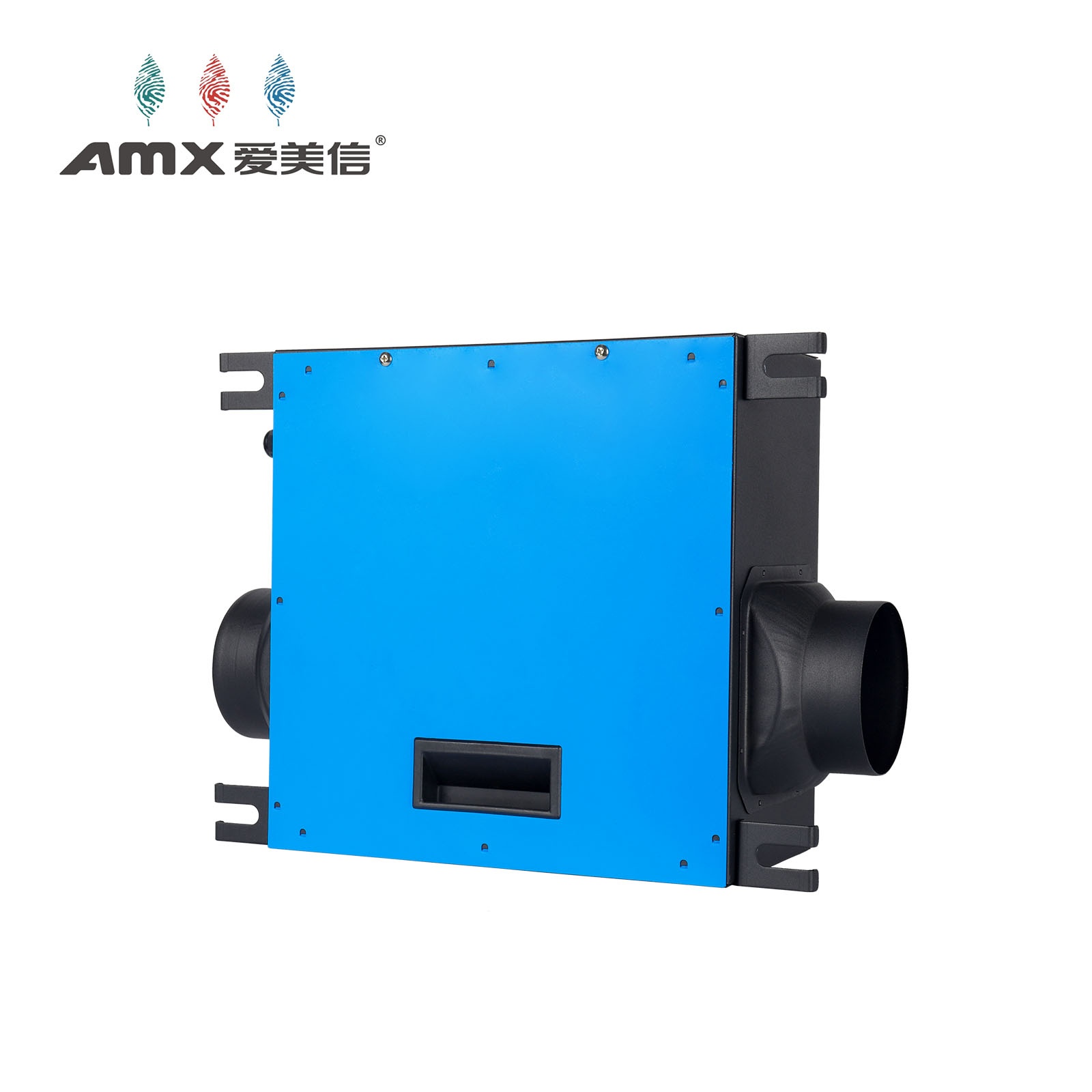

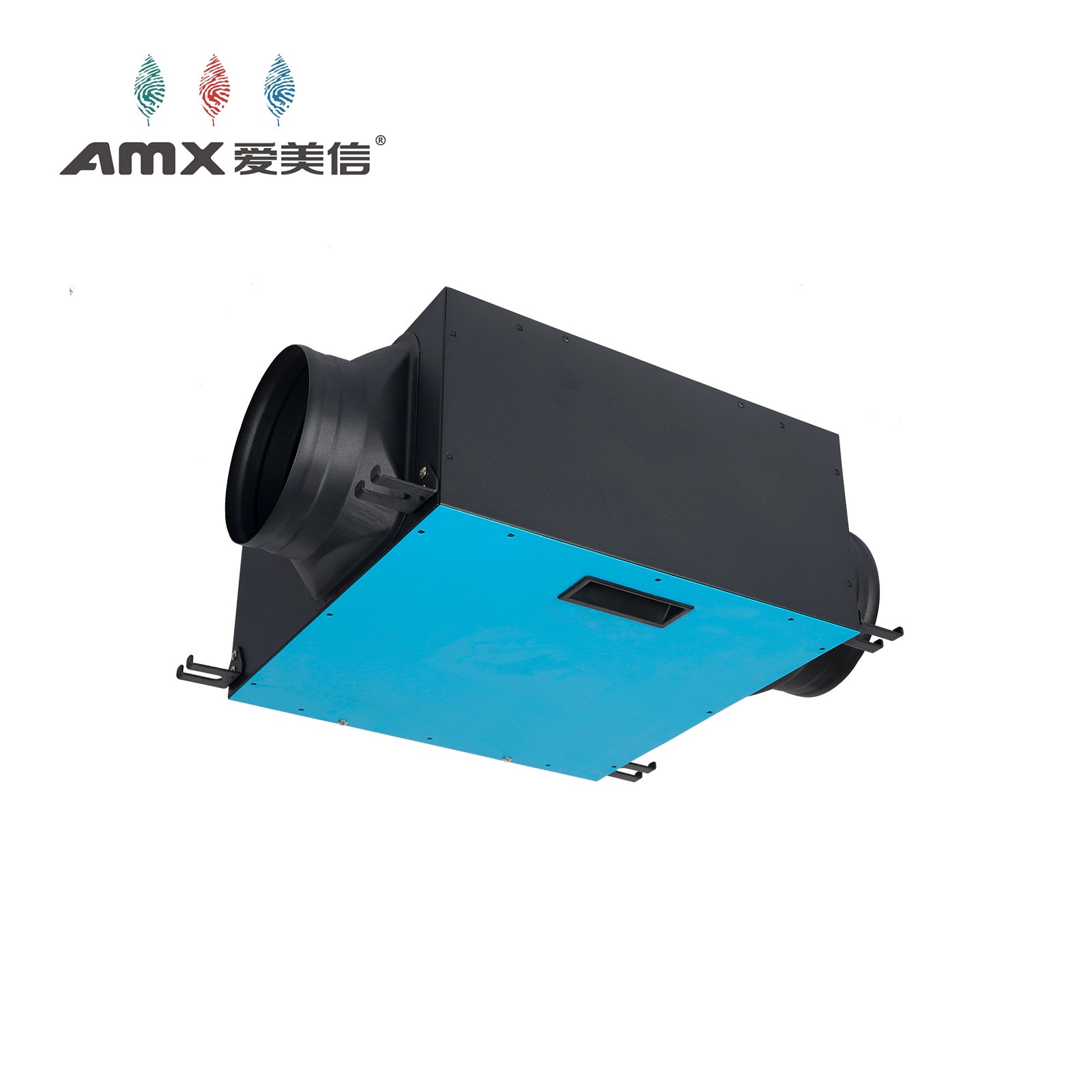

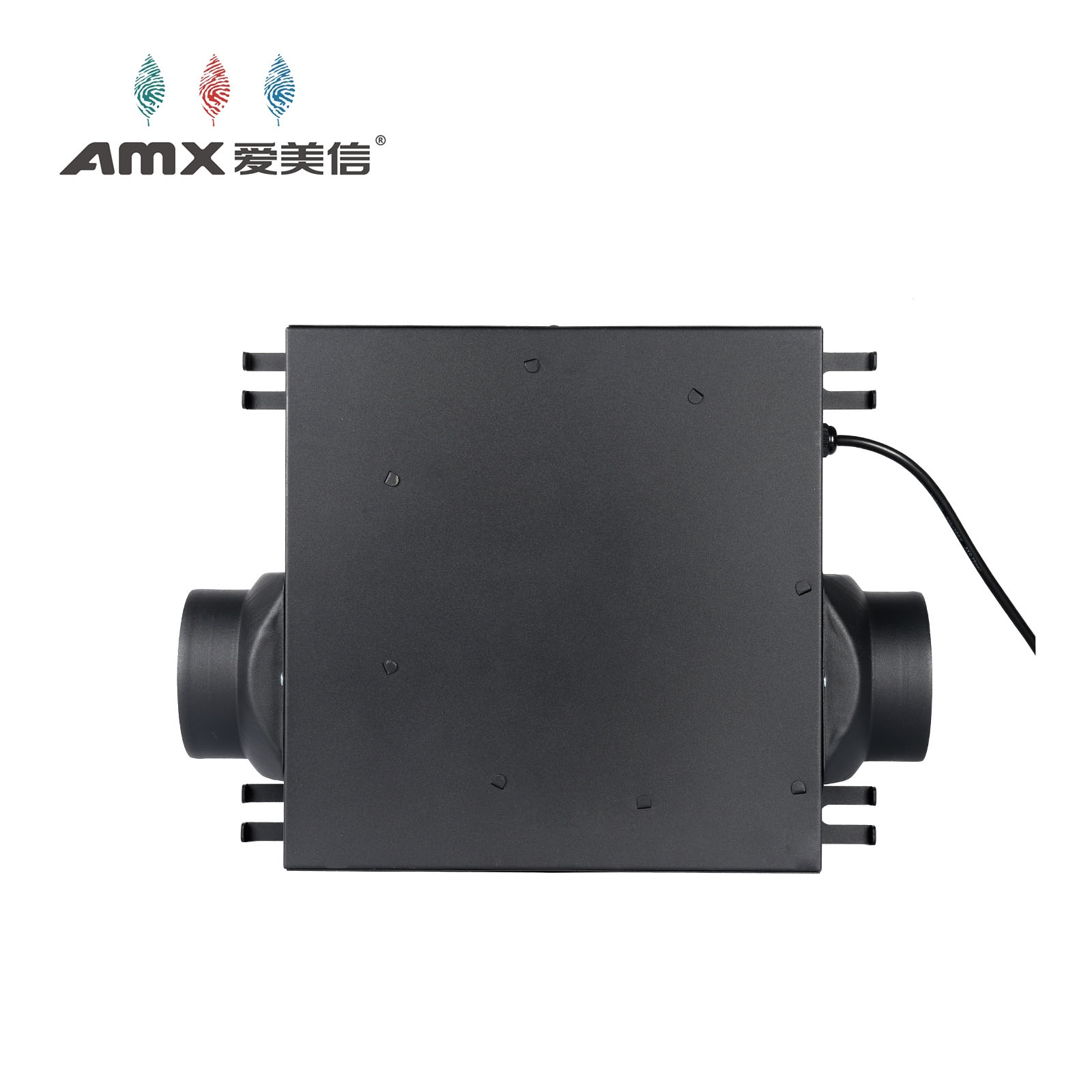

DPT Acoustic Inline Box Duct Fan
- Product No.：20231211154915
PerformanceTable
-- Quiet Whisper Square Inline Ducted Ventilation Fan for HVAC Fresh Air System
| Model | Vol./Freq. | Power | Air volume | Noise | Applicable area |
Static pressure | Duct size |
| (V/Hz) | (W) | (m3/h) | (dB) | (m²) | (Pa) | (Φmm) | |
| DPT10-100 |
220/50 110/60 |
28 | 100 | 20 | 5~10 | 110 | 100 |
| DPT10-180 | 34 | 180 | 23 | 8~16 | 150 | 100 | |
| DPT15-260 | 38 | 260 | 25 | 10~22 | 130 | 150 | |
| DPT15-350 | 42 | 350 | 30 | 14-28 | 140 | 150 | |
| DPT15-500 | 62 | 500 | 32 | 18-40 | 150 | 150 |
Unique Design
-- Unique design with other box inline fan on the market. Offer you a strength of compitition.
|
Plug-in Quick Inlet/Outlet only 1 screw for fixing & Disassembly |
Plug-in Quick Access Panel only 2 screws for fixing & Disassembly |
Super Compact & Thin Body Comparison of 100CMH Model (DPT10-100) with other products on market. |
