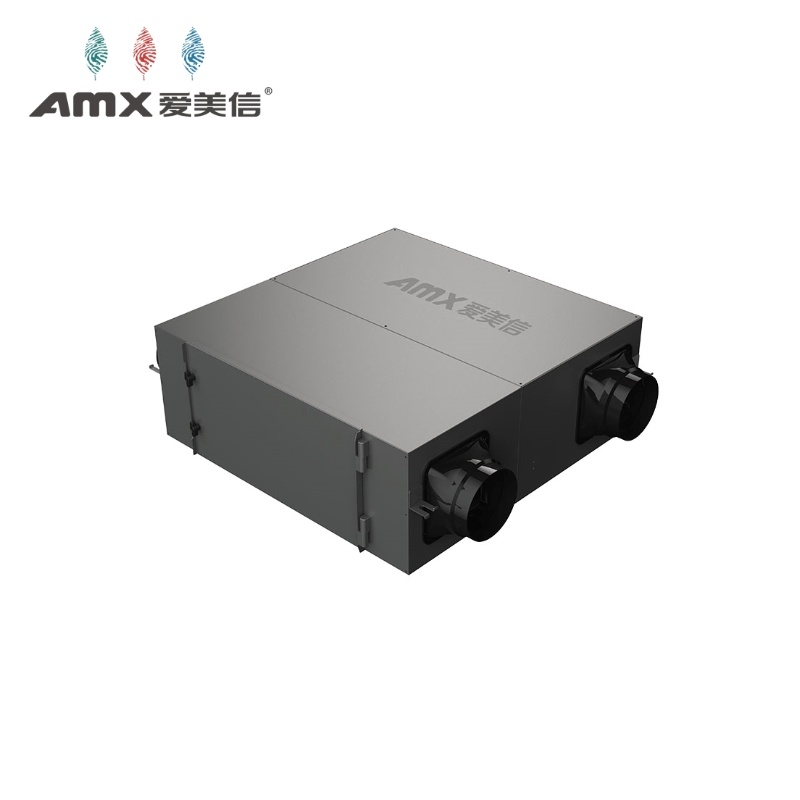

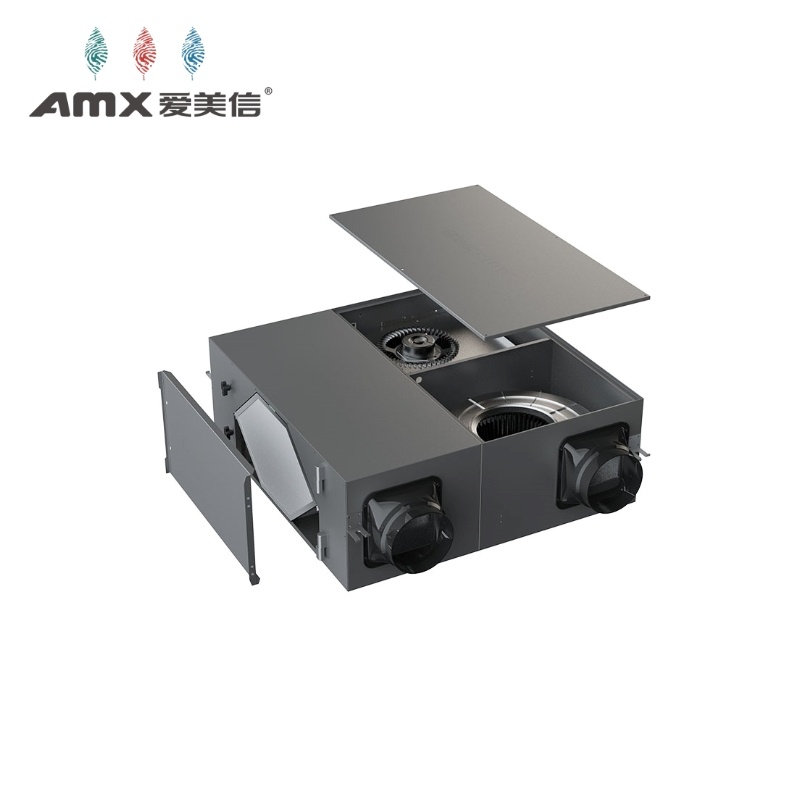

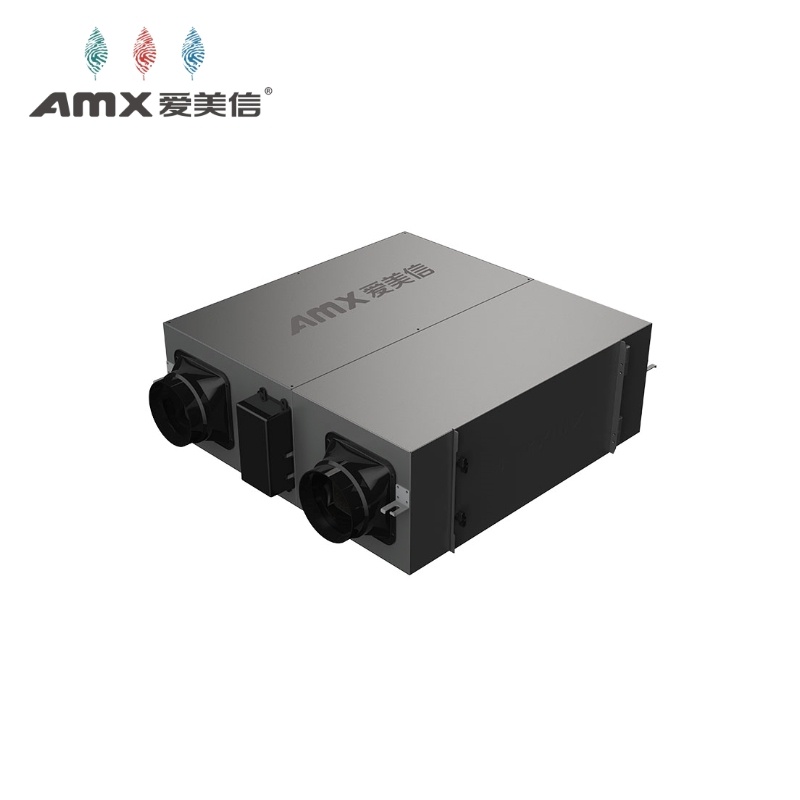

ER Thin Type Energy Recovery Ventilation
- Product No.:20231211142736
Feature:
Energy Recovery: Double direction exchange air, with cross-counter flow high-efficiency full heat exchange core, high heat exchange efficiency and energy saving.
Casing: Upgraded sand grain gray appearance design, with electrostatic spraying technology, side inspection and under inspection in one-body inspection door design.
Quality performance: Thin body, compactstructure, silent operation, easy to enjoyoquality home life.
Filtration and purification: with primary filtration, it can effectively filter air dustparticles and purify the air. lt can be used with FX purification box flexibly.
Control model:LCD control as standard, three level of speed adjustment.
**Specification** (220V/50Hz)
Energy Recovery: Double direction exchange air, with cross-counter flow high-efficiency full heat exchange core, high heat exchange efficiency and energy saving.
Casing: Upgraded sand grain gray appearance design, with electrostatic spraying technology, side inspection and under inspection in one-body inspection door design.
Quality performance: Thin body, compactstructure, silent operation, easy to enjoyoquality home life.
Filtration and purification: with primary filtration, it can effectively filter air dustparticles and purify the air. lt can be used with FX purification box flexibly.
Control model:LCD control as standard, three level of speed adjustment.
**Specification** (220V/50Hz)
Model | Power (w) |
Air Flow (m³/h) |
Static Pressure (Pa) |
Noise (dB) |
Temperature Exchange Efficiency (%) | Duct Size (mm) |
|
Cooling | Heating | ||||||
ER150-D1 | 75 | 150/120/100 | 160 | 32 | 56/70 | 67/80 | 100 |
ER250-D1 | 115 | 250/200/150 | 170 | 35 | 53/67 | 63/76 | 150 |
ER350-D1 | 140 | 350/300/250 | 210 | 38 | 60/66 | 68/79 | 150 |
ER500-D1 | 190 | 500/400/300 | 220 | 42 | 54/60 | 61/74 | 200 |
ER800-D1 | 280 | 800/650/500 | 230 | 43 | 56/65 | 67/75 | 250 |
ER1000-D1 | 350 | 1000/900/800 | 240 | 44 | 55/63 | 64/73 | 250 |
